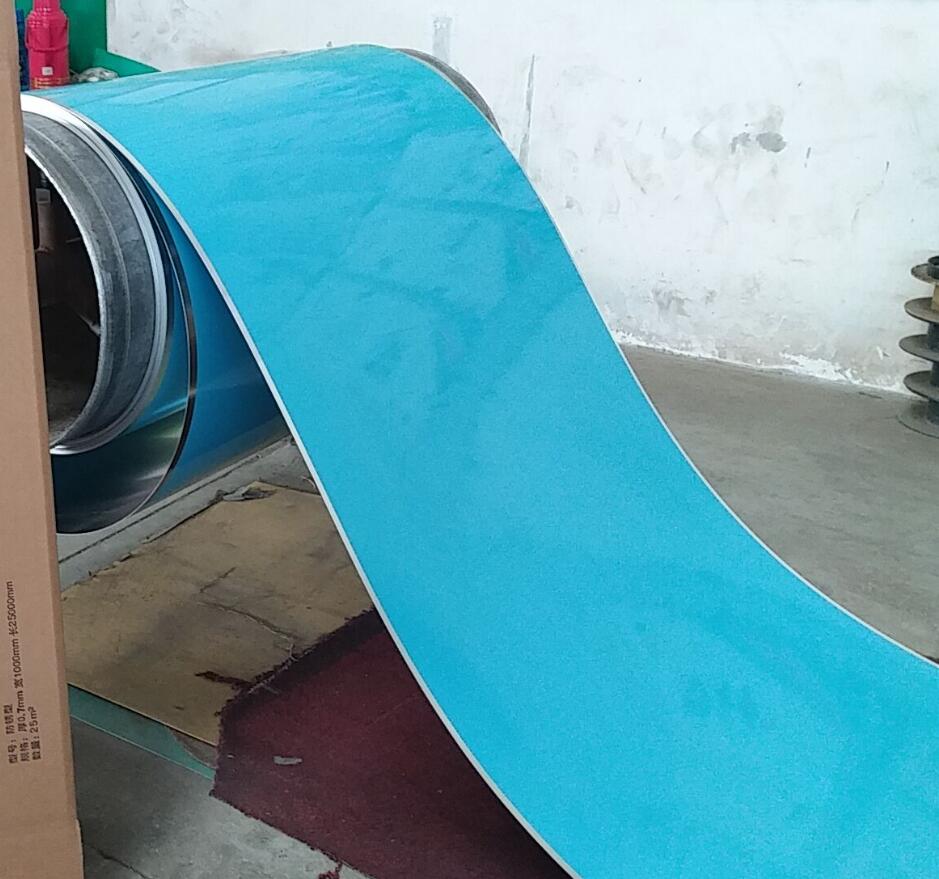

Aluminum coil with polysurlyn coating
Quick Details:
- Package: Plastic & Carton packing, In wooden or steel pallets.
- Most common used alloy: 1060, 3003, 3105
- Thickness: 0.4-1.2mm
- Poly surlyn thickness: 3mill(0.76μm)
- Delivery time: 25-30 days
- Payment terms: TT, LC, Westunion, Bitcoin, Trade Assurance
Get A Quote
EcoIn Aluminum Jacketing has a bare outer surface and comes standard with a 3-mil thick polysurlyn moisture barrier heat-laminated to the interior surface to help prevent galvanic corrosion by contact of dissimilar metals in the presence of moisture.
Standard Sizes
| Thickness(inch) | Thickness(mm) | Width(mm) | Length(m) | Suggested Application |
|---|---|---|---|---|
| 0.016 | 0.4 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | OD below 36”(914mm) insulated lines |
| 0.020 | 0.5 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | OD below 36”(914mm) insulated lines |
| 0.024 | 0.6 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | OD 36”-8′ (914mm-2.19m) insulated lines&equipment |
| 0.032 | 0.8 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | special applications where extra thickness and protection is required, such as fabricated tank head covers and other special fabrications |
| 0.040 | 1 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | special applications where heavy mechanical is required |
| 0.050 | 1.2 | 914, 1000, 1219 | 30, 60, 90, coil or sheet | flat ducts or precipitators. Also recommended for areas subject to high wind conditions |
Remarks: Other sizes available upon request.
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Zn | Mg | Ti | Cr | Other Elements | AL | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Each | Total | ||||||||||
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.05 | 0.03 | 0.03 | – | 0.03 | 99.6min | |
| 1100 | Si+Fe=0.95 | 0.05-0.20 | 0.05 | 0.10 | – | – | – | 0.05 | 0.15 | 99.0min | |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.50 | 0.10 | – | – | – | 0.05 | 0.15 | reminder |
| 3105 | 0.6 | 0.7 | 0.30 | 0.30-0.80 | 0.40 | 0.20-0.80 | 0.10 | 0.20 | 0.05 | 0.15 | reminder |
| 5005 | 0.3 | 0.7 | 0.20 | 0.20 | 0.25 | 0.50-1.10 | – | – | 0.05 | 0.15 | reminder |
EcoIn aluminum sheet has below features:
Light weight: Aluminum is about 1/3 weight of iron or steel, making it easier to handle and less expensive to ship
Strong: the tensile strength can be 85-120Mpa, and can satisfy most of insulation jacketing needed.
Corrosion resistant: they do not rust
Easy to fabricate & assemble
Ecoin aluminum sheet can be used as:
Aluminum Jacketing is recommended for HVAC, Insulated Piping, Tanks & vessels less than 8 feet in diameter.
Deep corrugated sheets are recommended for diameters greater than 8 feet.
Chemical Plants & Refineries: Distillation columns, tank farms, fractionation units, cokers and ethylene production units.
Paper Mills: Chemical storage tanks, breechings and ducts.
Steel Mills: Pickle acid tanks, oxygen production units, fuel oil and tar storage tanks.
Miscellaneous: Power station, Food processing plants, LPG storage units, LNG storage units, sewage and waste water treatment plants.
Click below to see Typical Project
Aluminum Cladding sheet with Polysurlyn Moisture Retardant Coating
